OUJVAN F6 LED Machine Light for Spring Machines & EDM/Grinders
Premium 24V DC input industrial LED CNC machine work lamp with flexible long swing arm for precision manufacturing applications.
Technical Specifications
| Specification |
Details |
| Model Number |
F6 |
| Input Voltage |
AC/DC 24V |
| Color Temperature |
6000-6500K |
| Power Cord Length |
Approximately 0.3M (standard) |
| Installation Method |
Fixed Base |
| Luminous Efficiency |
75Lm/W |
| Power |
9W |
| Input Current |
(24V) 400mA
(220V) 56mA |
| Luminous Flux |
710Lm |
| Protection Class |
IP65 |
| Color Rendering Index (CRI) |
70 |
| Drive Power Supply |
Isolation |
| Power Factor |
>0.8 |
| Surface Temperature |
<60℃ |
| Light Angle |
30° |
| Lifespan |
50,000 Hours |
| Certification |
CE, RoHS |
| Environment Temperature |
-20~45℃ |
| Storage Temperature |
-40~70℃ |
| Environmental Humidity |
10~90% |
| Store Humidity |
10~90% |
| MOQ |
2 Pieces |
| Lead Time |
1-3 Working Days |
Applications & Industry Fit
Engineered for CNC machines, engraving machines, EDM (Electrical Discharge Machining), milling machines, machining centers, grinding machines, and other industrial equipment. Ideal for industrial manufacturing, metalworking, and precision engineering environments in aerospace, automotive, and tool fabrication industries.
Core Features
- Flexible & Precise Positioning: Fixed base with 270° adjustable joints for accurate workspace illumination
- IP65 Waterproof & Industrial Durability: Resists water, coolants, and harsh industrial fluids

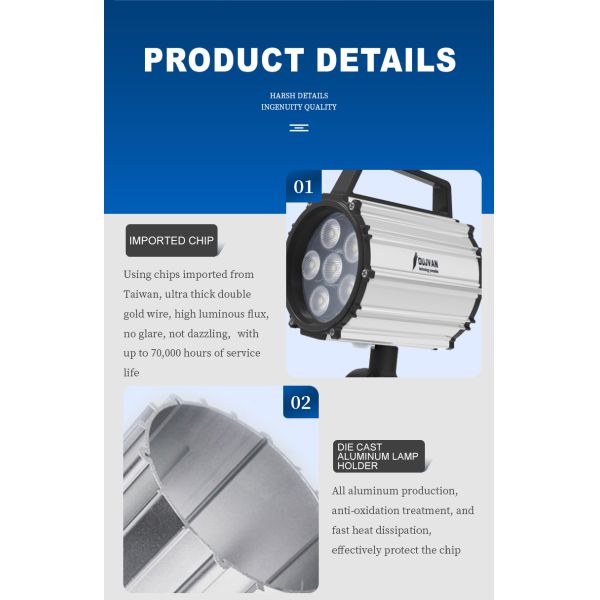

- All-Aluminum Construction: Explosion-proof, anti-drop design for continuous industrial use
- High Efficiency Lighting: 9W output delivering 810lm with >90lm/W efficiency
- Accurate Color Rendering: CRI >80Ra for quality control in machining and fabrication
- Optimal Thermal Management: Operates at <60°C with 50,000-hour lifespan
Customization Options
Customize the light to match your industrial equipment requirements:
- Model: FS (short arm), F5 (long arm), or F6L (extended arm)
- Voltage: 02 (AC/DC24V) or 03 (AC220V/50/60Hz)
- Color Temperature: B (4000-4500K) or C (6000-6500K)
- Power: 9W or other available ratings
- Switch: S (with switch) or N (without switch)

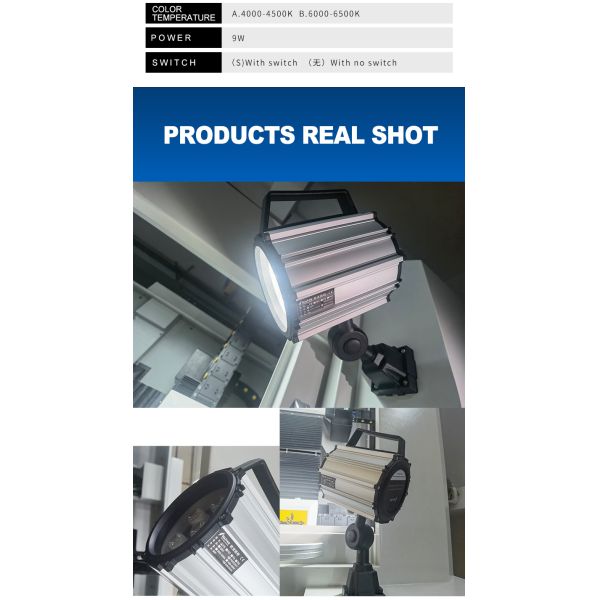

Product Images
Frequently Asked Questions
How to order our product?
1) Provide model, quantity, and requirements
2) We prepare Proforma Invoice
3) Confirm PI and make payment
4) We ship goods with tracking number
5) We track until delivery completion
What's your warranty?
One year warranty
What's your shipment method?
Express, air, sea, or train shipping - we recommend the most suitable method for your needs
What's about MOQ?
Minimum order quantity: 2 pieces for first order
What payment methods do you accept?
T/T, Paypal, Western Union, L/C
What's the ordering process?
Send inquiry via email - we respond within 24 hours
Perfect for manufacturers, machine shops, industrial plants, and precision engineering firms seeking reliable, high-performance LED lighting for CNC machines and industrial machinery. Enhance productivity, accuracy, and workplace safety with lighting engineered for modern industrial manufacturing.
